Product Comparison

Home > Product comparison

  • model Size(mm/inch) Magnet(OD/Wgt)(mm/oz) Rating Power Sensitivity (1w/1m) VC Size (mm/inch) Voice Coil Material Fs/Freq.Range Qts BL Vas EBP Net Weight

  • J6521nd

         530/21 Neodymium 1800W 98dB 150/6 Copper 31~1000Hz 0.34 41.6T.m 186 97 20.8kg

  • 21DM2000

         530/21 330/400 2000W 98dB 152/6 Copper 36~800Hz 0.295 43.8T.m 166 120 34.4kg

  • J6021

         530/21 245/190 1500W 97dB 115/4.5 Copper 29 ~ 1000Hz 0.43 28.8T.m 260 72 16.5kg

  • J6118nd/2

         460/18 Neodymium 1400W 97dB 115/4.5 Copper 39~1000Hz 0.39 28.8T.m 137 95 11.6kg

  • S7118

         469/18 220/125 800W 98dB 100/4 Copper 32 ~ 1000Hz 0.36 26T.m 200 97 13kg

  • J6218/2

         460/18 280/205 1300W 98dB 125/5 Copper 40~1000Hz 0.30 34T.m 132 133 19.2kg

  • J6418

         460/18 253/155 1300W 96dB 125/5 Copper 41 ~ 1000Hz 0.56 27T.m 117 69 15.3kg

  • M5118/2

         460/18 220/125 800W 98dB 100/4 Copper 32 ~ 1000Hz 0.36 26T.m 200 97 13kg

  • J6318nd/2

         460/18 Neodymium 1500W 100dB 125/5 Copper 31~1000Hz 0.168 39T.m 225 152 13.5kg

  • ND9118s

         460/18 Neodymium 750W 96dB 100/4 Copper 31~1000Hz 0.55 22.3T.m 175 58 9.6kg

  • J6818

         460/18 330/333 2000W 98dB 150/6 Copper 75 ~ 500Hz 0.60 40T.m 25 121 29kg

  • J6618

         460/18 280/245 1500W 98dB 125/5 Copper 37 ~ 1000Hz 0.328 33.5T.m 132 112 21kg

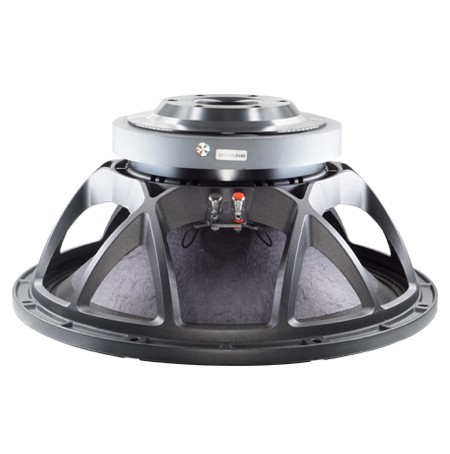

  • J6018/2

         460/18 245/190 1400W 97dB 115/4.5 Copper 31 ~ 1000Hz 0.32 29T.m 223 94 16kg

  • 18DM1200

         460/18 220/250 1200W 99dB 100/4 Copper 36 ~ 1000Hz 0.36 28.1T.m 158 100 17.7kg

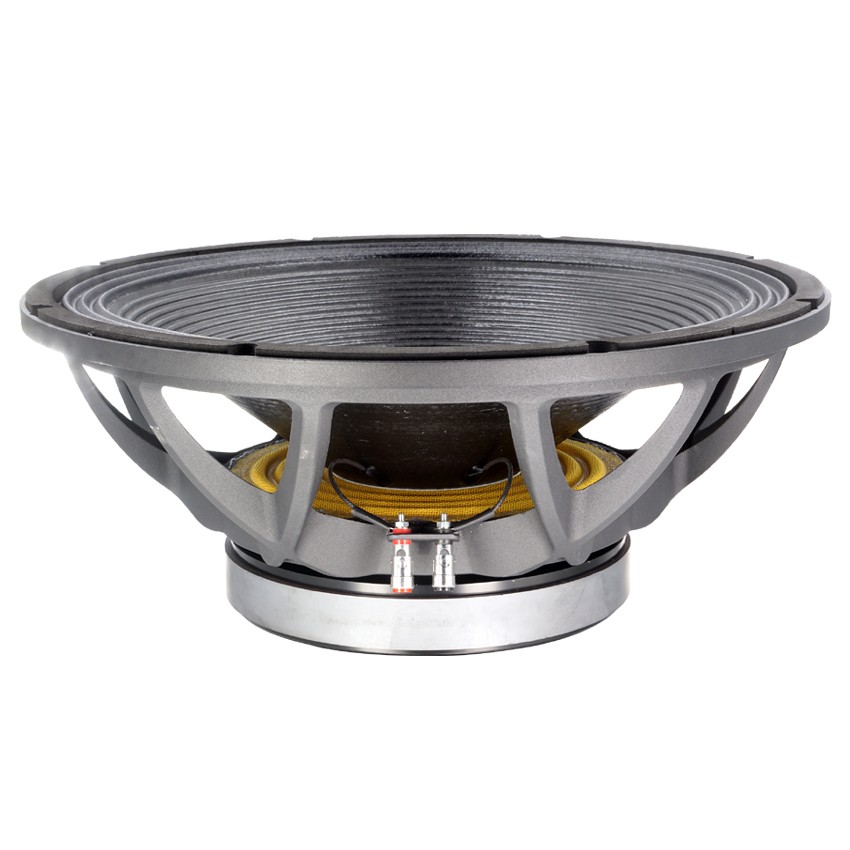

  • E2018

         460/18 245/190 1200W 97dB 100/4 Copper 32 ~ 1000Hz 0.33 29.1T.m 200 94 16.7kg

  • C15-400

         380/15 190/78 400W 97dB 76/3 SV-W(Copper) 38 ~ 3000Hz 0.36 19.4T.m 177 103 7.3kg

  • M5315s

         380/15 220/125 800W 97dB 100/4 Copper 40 ~ 1000Hz 0.32 25.4T.m 95 121 11.7kg

  • M5415/2

         380/15 220/125 800W 99dB 100/4 CCAW 40 ~ 2800Hz 0.30 22.4T.m 156 129 11kg

  • PA15-50/4ohm

         380/15 145/42 250W 96.5dB 50/2 Copper 44~2900Hz 0.50 11.9T.m 177 85 3.8kg

  • PA15-65/4ohm

         380/15 156/50 330W 95.5dB 65/2.5 Copper 38~3000Hz 0.48 13.4T.m 173 78 4.5kg

  • PA15-65/8ohm

         380/15 156/50 330W 96dB 65/2.5 Copper 41~3000Hz 0.56 15.7T.m 148 71 4.5kg

  • PA15-50/8ohm

         380/15 145/42 250W 95.5dB 50/2 Copper 43~2900Hz 0.74 13.6T.m 137 55 3.8kg

  • C15-500

         380/15 200/100 500W 99dB 76/3 CCAW 43 ~ 3000Hz 0.38 20.2T.m 125 118 8.7kg

  • 15BM350

         380/15 180/68 350W 97.5dB 76/3 SV-W(Copper) 38 ~ 3000Hz 0.32 18.8T.m 166 103 6.8kg

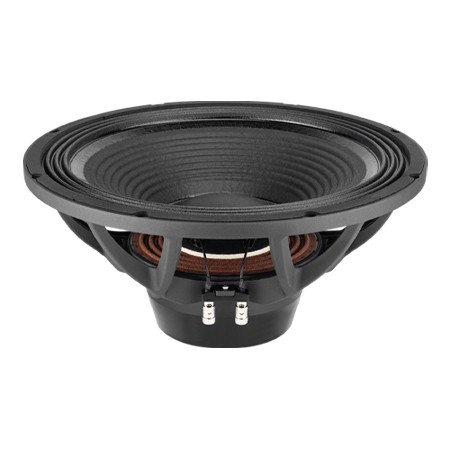

  • ND9315s

         380/15 800W 98dB 100/4 Copper 40~1000Hz 0.32 24.9T.m 102 121 8.3kg

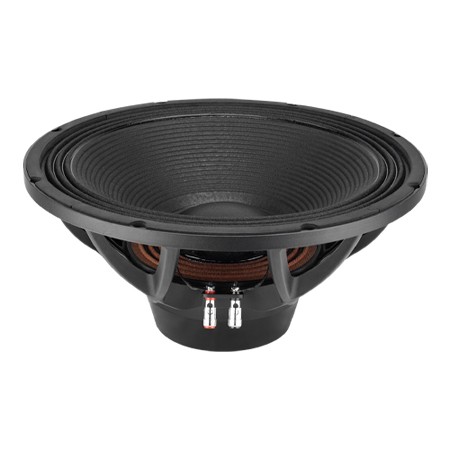

  • ND9415w

         380/15 Neodymium 700W 97dB 100/4 CCAW 40~2500Hz 0.32 25T.m 104 122 8.3kg

  • J6115nd

         380/15 Neodymium 600W 99dB 86/3.4 CCAW 37~2800Hz 0.3 20.4T.m 187 122 6.1kg

  • ND9015w

         380/15 Neodymium 500W 99dB 76/3 CCAW 45~2500Hz 0.39 18.7T.m 145 112 5.5kg

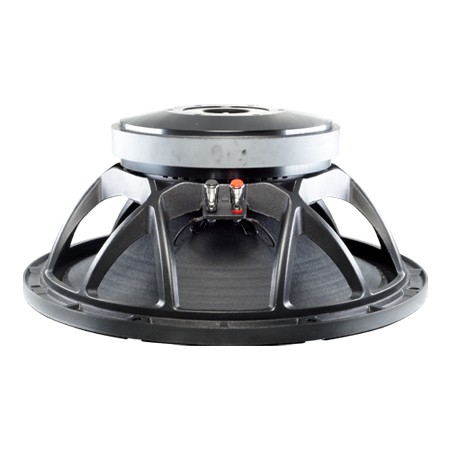

  • M5115

         380/15 220/125 700W 98dB 100/4 Copper 42 ~ 2100Hz 0.29 25.8T.m 109 150 11.6kg

  • S7315s

         380/15 200/97 650W 96dB 91/3 Copper 39 ~ 1000Hz 0.42 21T.m 120 90 8.8kg

  • J6015

         380/15 190/95 650W 99dB 86/3.4 CCAW 43 ~ 2800Hz 0.29 22T.m 145 143 7.9kg

  • 15DM550

         380/15 190/256 550W 100dB 76/3 Pure Aluminum 44 ~ 3100Hz 0.35 20.3T.m 140 122 10.9kg

  • M5215

         380/15 190/78 450W 99dB 76/3 CCAW 45 ~ 2800Hz 0.42 18.4T.m 132 109 8.1kg

  • U8215

         380/15 190/78 500W 98dB 76/3 CCAW 45 ~ 3000Hz 0.40 18.7T.m 150 109 8.4kg

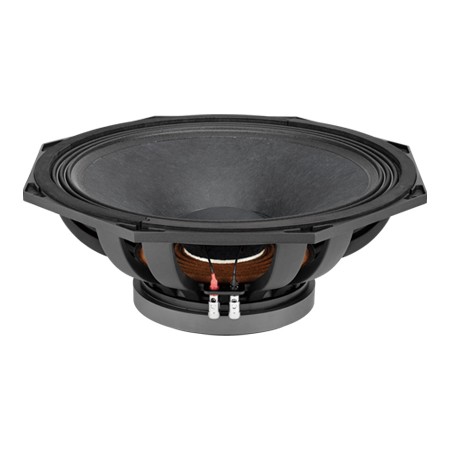

  • U8015

         380/15 190/78 400W 99dB 76/3 CCAW 38 ~ 3000Hz 0.34 17.7T.m 217 104 7.1kg

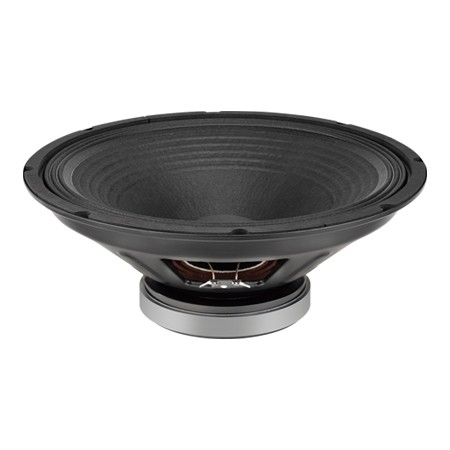

  • PS15-76

         380/15 170/60 350W 96dB 76/3 SV-W 37 ~ 2800Hz 0.42 15.6T.m 180 79 5.8kg

  • ND9012w

         300/12 Neodymium 400W 98.5dB 76/3 CCAW 44~3500Hz 0.259 19.8T.m 91 177 4.4kg

  • PA12-50/8ohm

         300/12 145/42 200W 95dB 50/2 Copper 47~2600Hz 0.58 12.1T.m 79 77 3.5kg

  • CX12441

         300/12 400W 98dB 76/3 CCAW 55 - 3000Hz 0.37 17.7T.m 52 154 10kg

  • S7012

         300/12 200/76 450W 97dB 76/3 Aluminum 41 ~ 2700Hz 0.34 16.3T.m 86 128 7.7kg

  • PA12-50/4ohm

         300 145/42 200W 95dB 50/2 Copper 51~2600Hz 0.47 12.0T.m 61 104 3.5kg

  • PA12-65/8ohm

         300/12 156/50 280W 95dB 65/2.5 Copper 46~3500Hz 0.44 14.2T.m 79 102 4.3kg

  • PA12-65/4ohm

         300/12 156/50 280W 95dB 65/2.5 Copper 45~3200Hz 0.37 12.7T.m 81 118 4.3kg

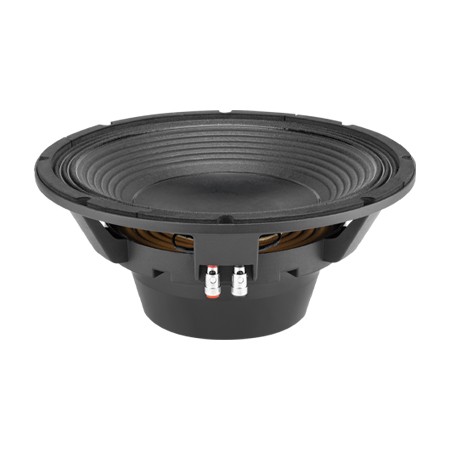

  • ND9412w

         300/12 550W 96dB 100/4 Flat Aluminum 61~2800Hz 0.49 26.9T.m 31 125 7.6kg

  • J6112nd

         300/12 500W 97dB 86/3.4 CCAW 55~3000Hz 0.41 18.8T.m 44 131 5.1kg

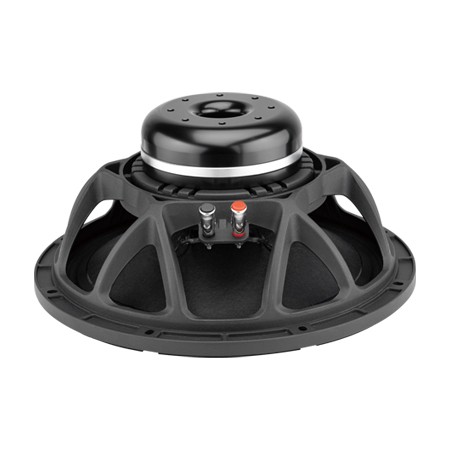

  • ND9512m

         300/12 400W 101dB 76/3 Aluminum 43~3000Hz 0.15 23T.m 94 343 5kg

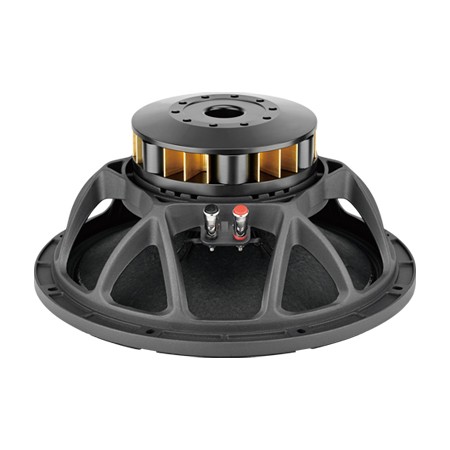

  • ND9812

         300/12 Neodymium 500W 98dB 76/3 CCAW 59~3600Hz 0.43 16.7T.m 50 135 5.4kg

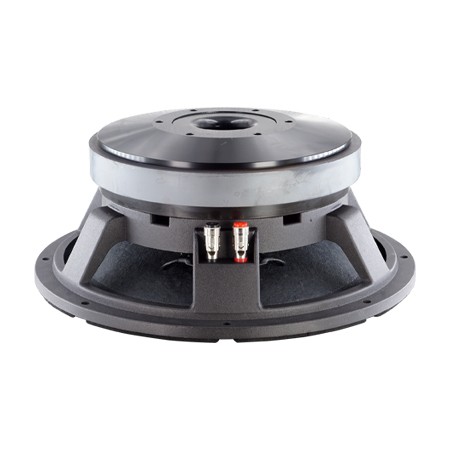

  • J6212

         300/12 220/125 550W 98.5dB 100/4 CCAW 55 ~ 2800Hz 0.266 23.0T.m 45 204 11kg

  • J6012/2

         300/12 190/95 550W 97.5dB 86/3.4 CCAW 55 ~ 3000Hz 0.35 18.7T.m 49 153 7.4kg

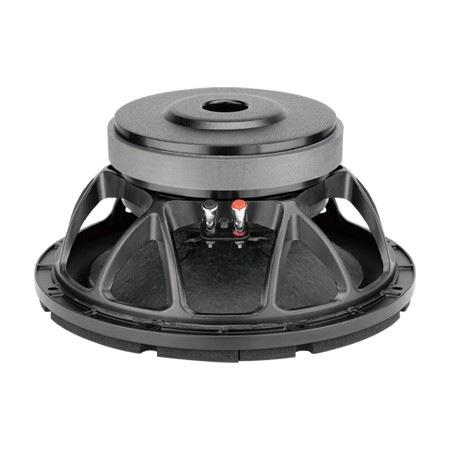

  • RS12-76

         300/12 190/95 450W 94dB 76/3 Copper 59 ~ 2900Hz 0.46 16.2T.m 26 123 8.2kg

  • 12DM450

         300/12 180/136 450W 98.5dB 76/3 CCAW 56 ~ 3200Hz 0.33 19.6T.m 50.6 165 9.5kg

  • M5012

         300/12 190/78 450W 98dB 76/3 Flat Aluminum 50 ~ 2700Hz 0.27 17.5T.m 59 192 7.5kg

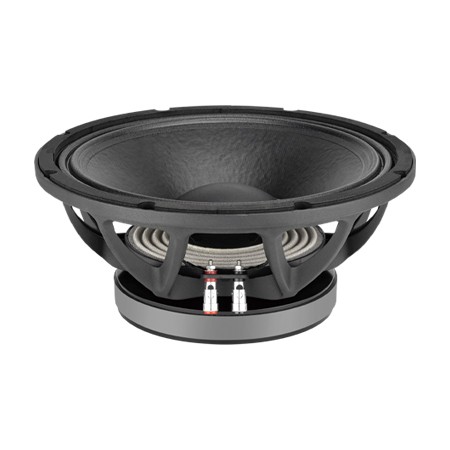

  • M5212

         300/12 190/78 500W 97.5dB 76/3 CCAW 45 ~ 3000Hz 0.31 18.4T.m 65 153 7.7kg

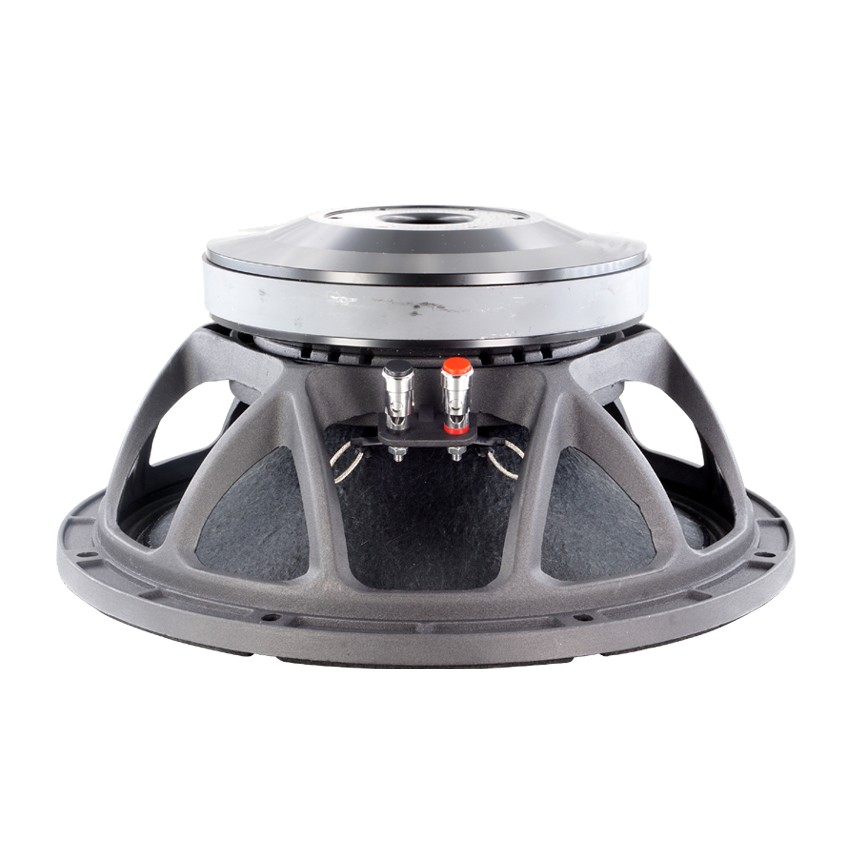

  • M5612

         300/12 190/78 400W 98dB 76/3 CCAW 58 ~ 3000Hz 0.336 19.8T.m 49 168 7.8kg

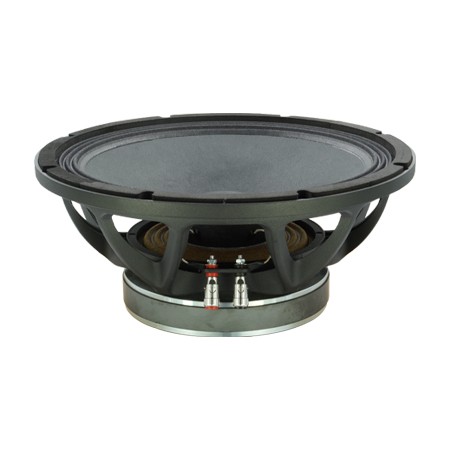

  • C12-400

         300/12 190/80 400W 97dB 76/3 CCAW 49 ~ 3500Hz 0.42 15.3T.m 71 113 6.7kg

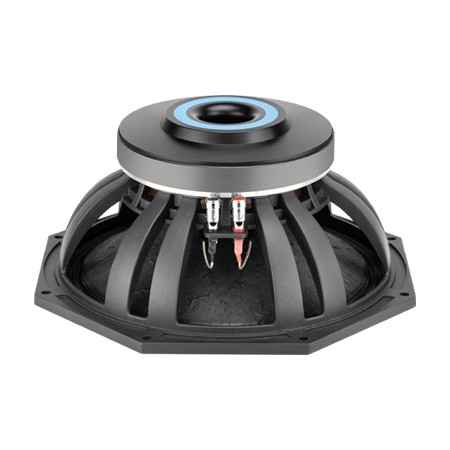

  • U8012

         300/12 180/68 400W 97.5dB 76/3 CCAW 45 ~ 3000Hz 0.34 15.3T.m 75.8 128 6.5kg

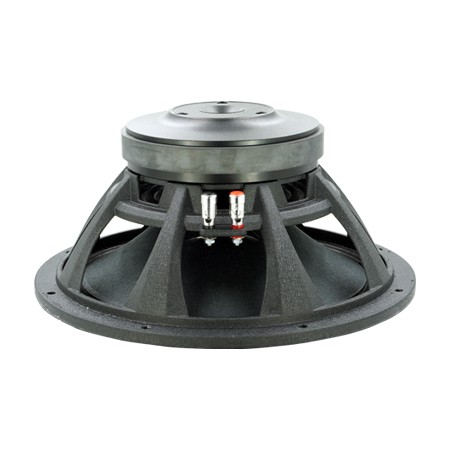

  • BL12-65

         300/12 179/65 350W 96dB 65/2.5 CCAW 50 ~ 2800Hz 0.39 17.4T.m 54 128 6kg

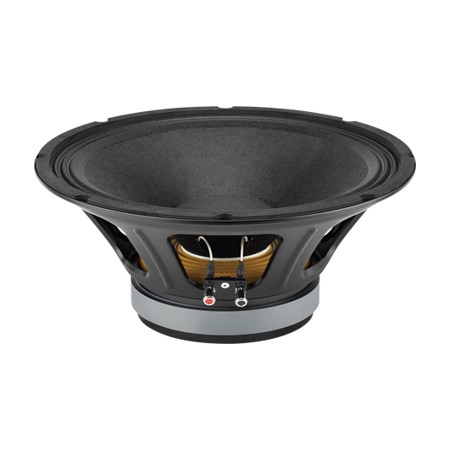

  • IS12-65

         300/12 156/54 300W 96dB 65/2.5 CCAW 47 ~ 5100Hz 0.43 13.8T.m 83 104 4.9kg

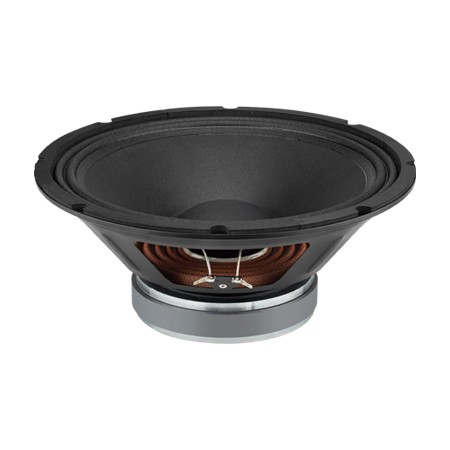

  • PS12-65

         300/12 156/50 250W 95dB 65/2.5 Copper 53 ~ 3000Hz 0.51 15T.m 46 95 4.3kg

  • ND9310m/16

         250/10 Neodymium 350W 96dB 76/3 CCAW 63~4100Hz 0.37 24.3T.m 22 165 3.7kg

  • M5410

         250/10 156/50 300W 94.5dB 65/2.5 Copper 54 ~ 3600Hz 0.31 15.7T.m 35 172 4.2kg

  • ND9010w

         250/10 Neodymium 350W 96dB 76/3 Aluminum 62 ~ 3500Hz 0.29 18T.m 28 213 3.7kg

  • ND9810

         250/10 Neodymium 400W 99dB 76/3 CCAW 70~4100Hz 0.24 20.2T.m 21 292 4.9kg

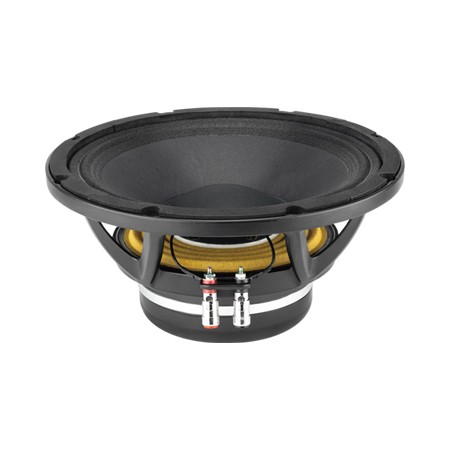

  • ND9510m

         250/10 Neodymium 350W 99dB 76/3 Aluminum 60~4300Hz 0.16 23T.m 28 360 4.6kg

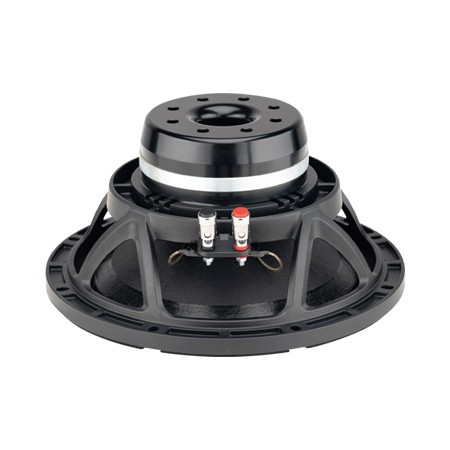

  • ND9310m/8

         250/10 Neodymium 400W 97dB 76/3 CCAW 63 ~ 4100Hz 0.30 17.6T.m 25 203 3.7kg

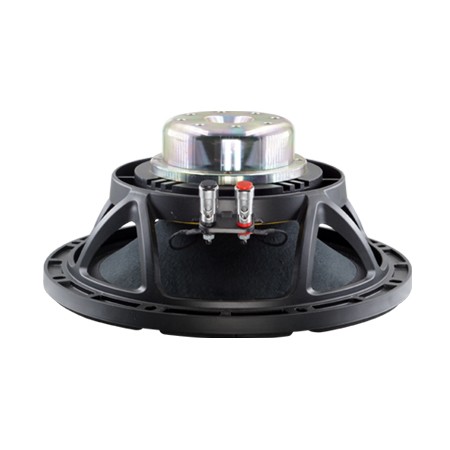

  • ND9410m/16

         250/10 Neodymium 300W 95dB 65/2.5 Pure Aluminum 65 ~ 4500Hz 0.52 18.4T.m 27 112 2.3kg

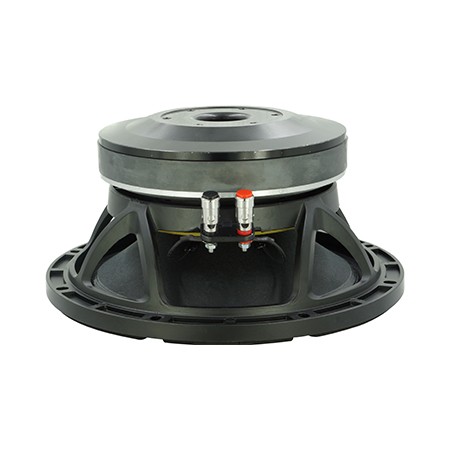

  • J6010

         250/10 180/80 400W 97dB 76/3 CCAW 55 ~ 3500Hz 0.30 16.5T.m 32 187 6.5kg

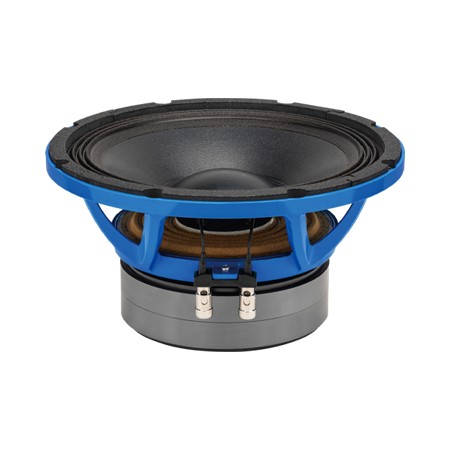

  • 10DM350

         250/10 156/100 350W 96.5dB 65/2.5 Fiberglass 63~ 3500Hz 0.36 15.7T.m 25.1 175 6.4kg

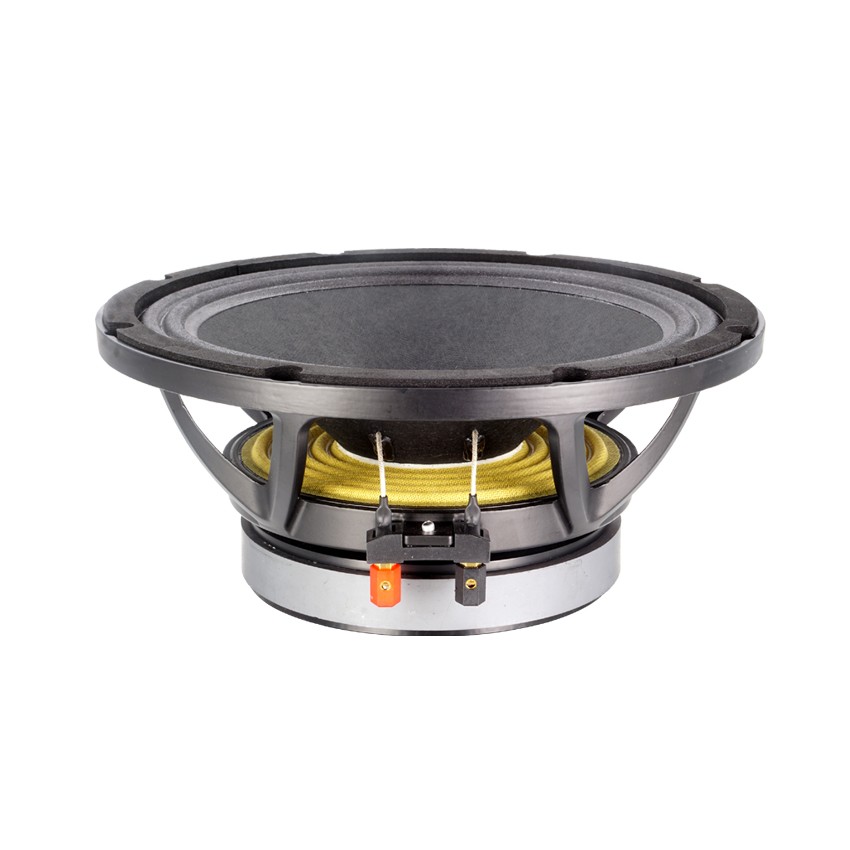

  • M5610

         250/10 156/50 250W 95.5dB 65/2.5 SV-W(Copper) 57 ~ 4000Hz 0.40 13.8T.m 31.9 139 4.2kg

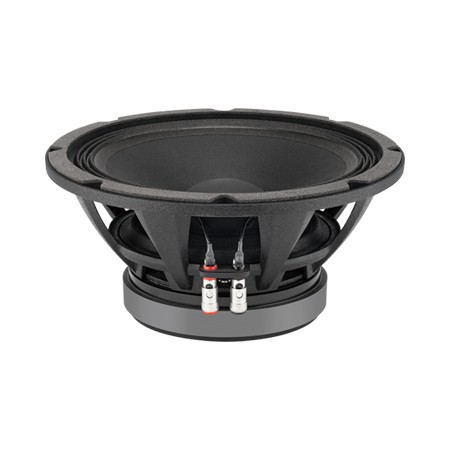

  • BL10-65

         250/10 156/52 300W 94dB 65/2.5 CCAW 61 ~ 4000Hz 0.36 15T.m 29 162 4.9kg

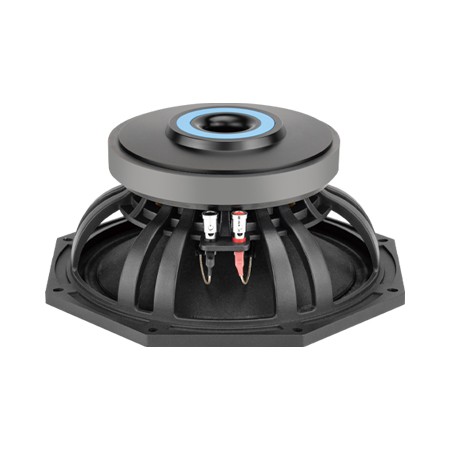

  • U8010

         250/10 170/60 280W 97dB 65/2.5 CCAW 55 ~ 3600Hz 0.33 14.0T.m 37.6 162 4.8kg

  • M5010

         250/10 140/45 180W 95dB 50/2 Copper 55 ~ 2800Hz 0.37 13.5T.m 35 148 3.5kg

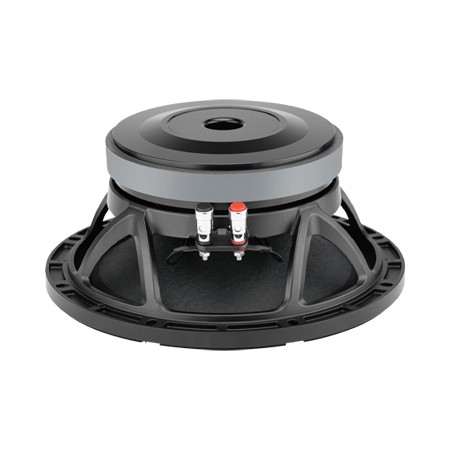

  • V3010m/8

         250/10 170/62 300W 97dB 65/2.5 CCAW 60 ~ 4800Hz 0.29 14.9T.m 34.5 212 5.0kg

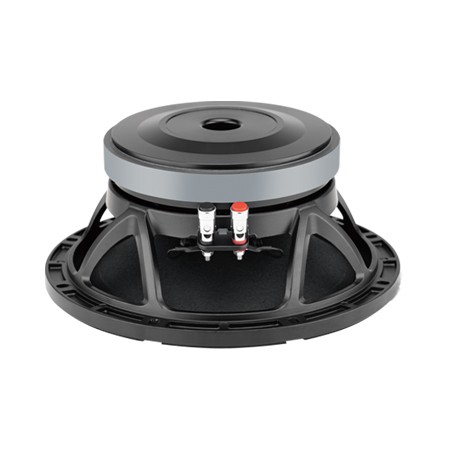

  • V3010m/16

         250/10 170/62 300W 96dB 65/2.5 Pure Aluminum 70 ~ 4800Hz 0.51 19T.m 20 139 5.0kg

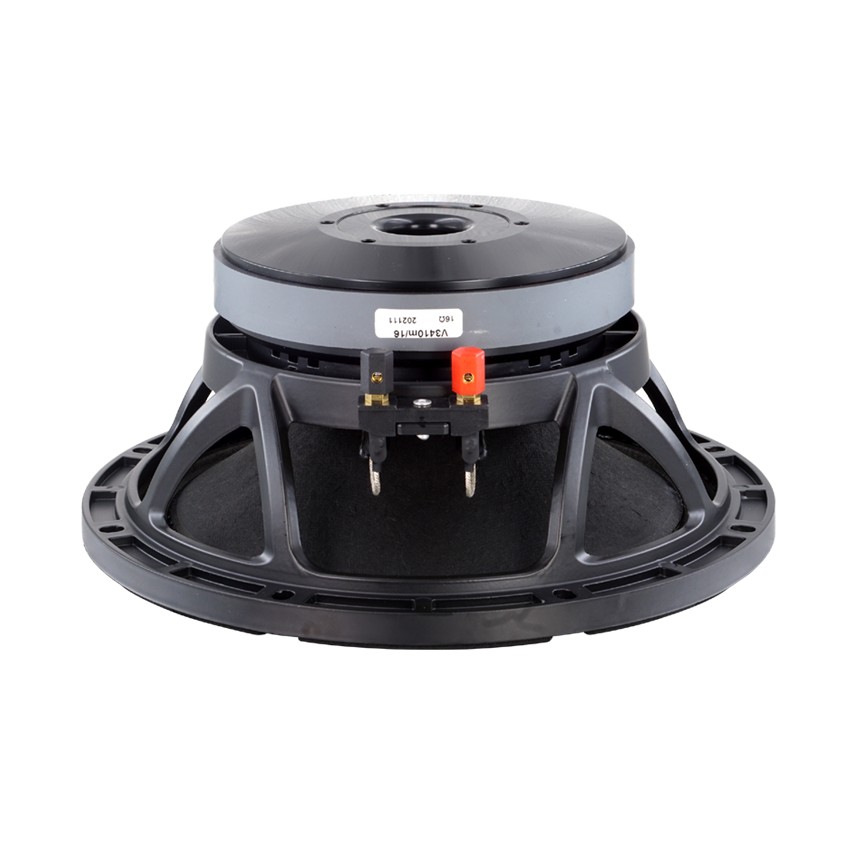

  • V3410m/16

         250/10 156/50 280W 95dB 65/2.5 CCAW 64 ~ 3500Hz 0.52 18.8T.m 24.7 123 4.3kg

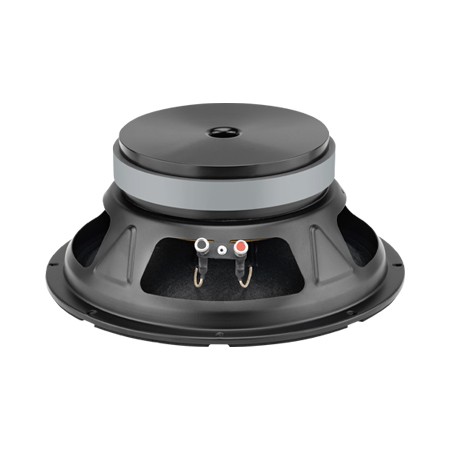

  • IS10-65

         300/12 156/54 280W 95dB 65/2.5 CCAW 60 ~ 4500Hz 0.41 14.8T.m 28 139 4.8kg

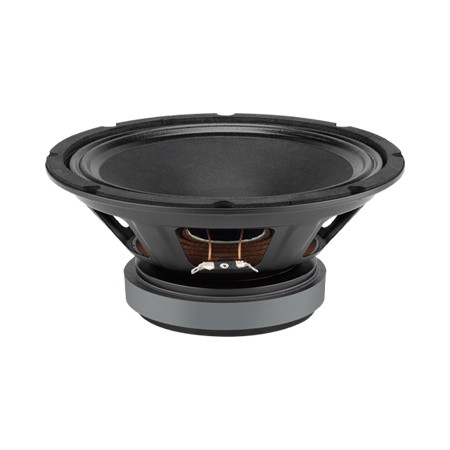

  • PS10-50

         250/10 145/42 150W 94dB 50/2 Copper 52 ~ 2800Hz 0.43 11.9T.m 42 122 3.5kg

  • CXN1044

         250/10 Neodymium 350W 98dB 76/3 CCAW 73 - 4100Hz 0.31 17.6T.m 23 228 4.1kg

  • CX10442

         250/10 250W 95dB 65/2.5 CCAW 50 - 3500Hz 0.29 15.2T.m 38.4 174 6.8kg

  • V3208m/16

         200/8 140/45 200W 95dB 50/2 CCAW 90 ~ 6000Hz 0.59 15.2T.m 10 144 3.2kg

  • ND9208w

         200/8 Neodymium 250W 95dB 50/2 Copper 63~4000Hz 0.27 14.5T.m 13.4 237 2.4kg

  • ND9408m/16

         200/8 Neodymium 250W 94dB 50/2 CCAW 80~6000Hz 0.61 15.5T.m 9.2 124 1.5kg

  • ND9608m/16

         200/8 Neodymium 300W 94.5dB 65/2.5 Pure Aluminum 70~5000Hz 0.36 18T.m 17 170 2kg

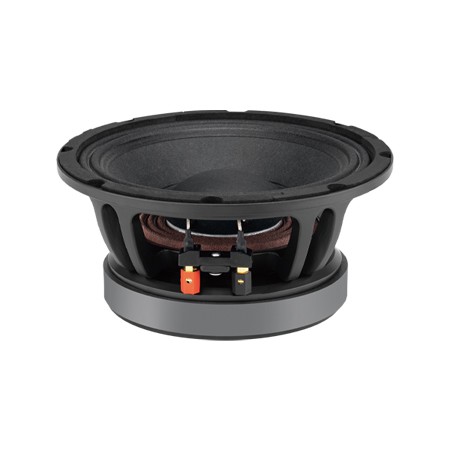

  • V3608m/8

         200/8 156/50 250W 96.5dB 65/2.5 CCAW 81 ~ 4100Hz 0.33 13.2T.m 11 231 4.0kg

  • PS08-38

         200/8 120/30 150W 92dB 38/1.5 CCAW 75 ~ 6300Hz 0.75 8.7T.m 11 99 2kg

  • MB06-38

         200/6.5 120/30 100W 92dB 38/1.5 Edgewound CCAW 125 ~ 9000Hz 0.78 7.65T.m 2.9 127 2.1kg

  • V3006m/16

         170/6.5 115/28 100W 93dB 38/1.5 CCAW 81 ~ 6000Hz 0.48 12.5T.m 7 156 2.0kg

  • ND9306m

         170 Neodymium 100W 95dB 38/1.5 CCAW 119 ~ 5600Hz 0.47 10.6T.m 3.6 243 1.2kg

  • R06-25

    170/6.5 90/15 50W 88dB 25/1 Copper 50 ~ 4200Hz 0.52 6.5T.m 17 76 0.9kg

  • V3005m

         127/5 100/19 100W 91dB 38/1.5 CCAW 121 ~ 7000Hz 0.58 7.8T.m 2.1 189 1.4kg

  • FR421

         100/4 70/8 40W 87dB 20/0.8 CCAW 91 ~ 17kHz 0.88 3.9T.m 2.5 83 0.5 kg

  • FR421nd

         100/4 Neodymium 40W 88dB 20/0.8 CCAW 90 ~ 16kHz 0.64 4.6T.m 2.7 118 0.22 kg

  • FC422

         100/4 70/8 40W 89.5dB 20/0.8 CCAW 134 ~ 17kHz 1.06 3.9T.m 1.6 105 0.5 kg

  • FC422nd

         100/4 Neodymium 40W 88dB 20/0.8 CCAW 134 ~ 18.7kHz 0.73 5.0T.m 1.4 174 0.22 kg

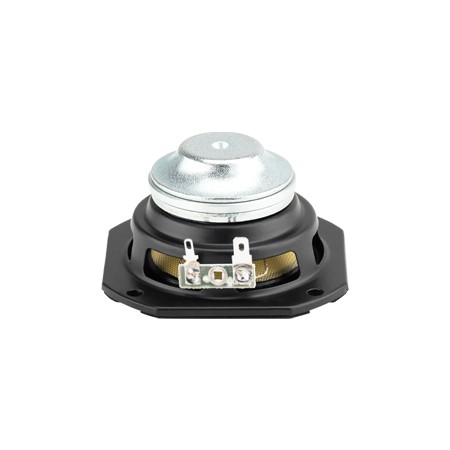

  • FC322nd

         80/3 Neodymium 40W 89dB 20/0.8 CCAW 138 ~ 20kHz 0.51 5T.m 0.67 248 0.22 kg

  • CDi7401

         38/1.5 Ferrite/170mm 90W 108dB 75/3 Edgewound Aluminum 500~17kHz T.m 4.5kg

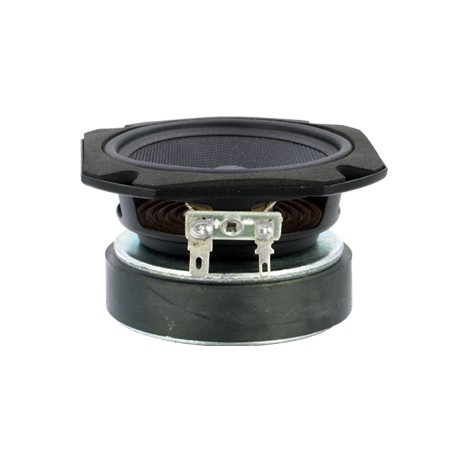

  • FR321

         80/3 40W 88dB 20/8 CCAW 110 ~ 15kHz T.m kg

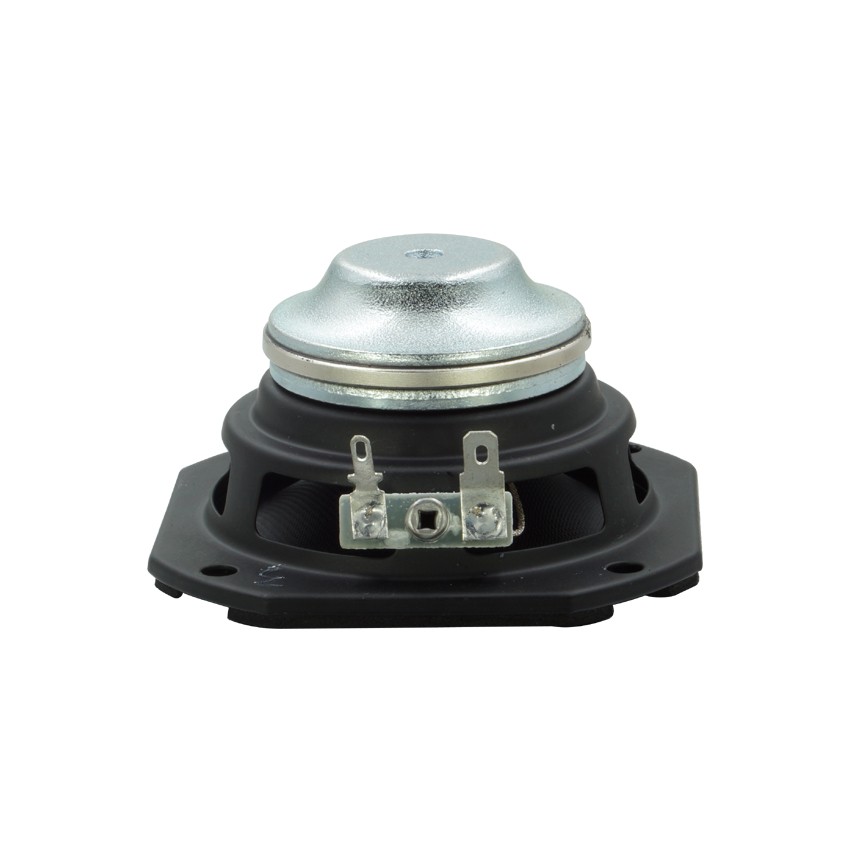

  • FR321nd

         80/3 Neodymium 40W 89dB 20/0.8 CCAW 115 ~ 15kHz 0.47 5T.m 1.0 214 0.22 kg

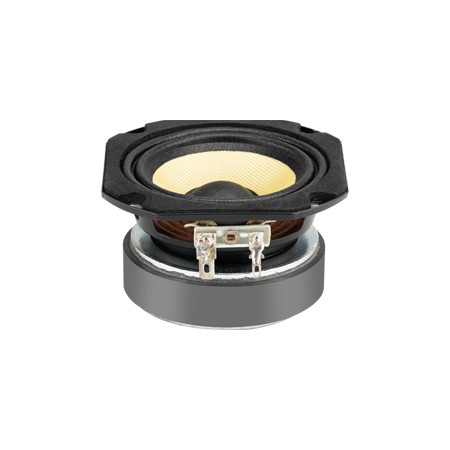

  • FC322

         80/3 70/8 40W 88.5dB 20/0.8 CCAW 138 ~ 20kHz 0.85 0.17T.m 0.68 137 0.48 kg

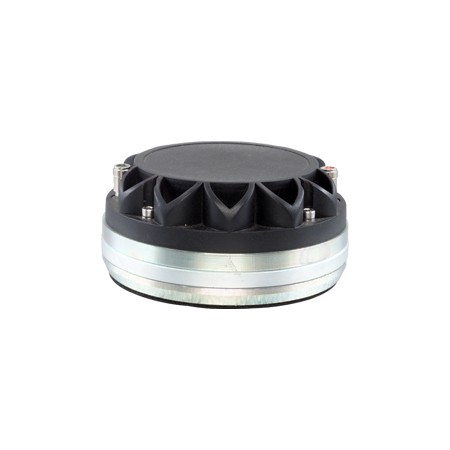

  • NDi7409

         38/1.5 Neodymium 90W 109dB 75/3 Edgewound Aluminum 700~18Hz T.m 2.1kg

  • NDi6509

         38/1.5 Neodymium 90W 109dB 75/3 Edgewound Aluminum 700~18kHz T.m 2.1kg

  • NDi4409

         25.4/1 Neodymium 50W 106dB 44/1.7 Edgewound Aluminum 800~19kHz T.m 0.9kg

  • CDi4401

         25.4/1 Ferrite/120mm 60W 106dB 44/1.7 Edgewound Aluminum 900~19kHz T.m 2.1kg

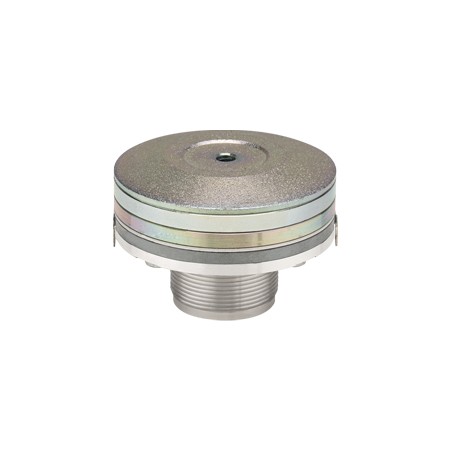

  • NDi3809

         25.4/1 Neodymium 50W 110dB 38/1.5 CCAW 1200~20kHz T.m 0.5kg

  • CDi4402

         25.4/1 Ferrite/102mm 55W 105dB 44/1.7 Edgewound Aluminum 900~19kHz T.m 1.7kg

  • CD3401

         25.4/1 Ferrite/100mm 40W 104dB 34/1.3 Aluminum 1000~20kHz T.m 1.2kkg
